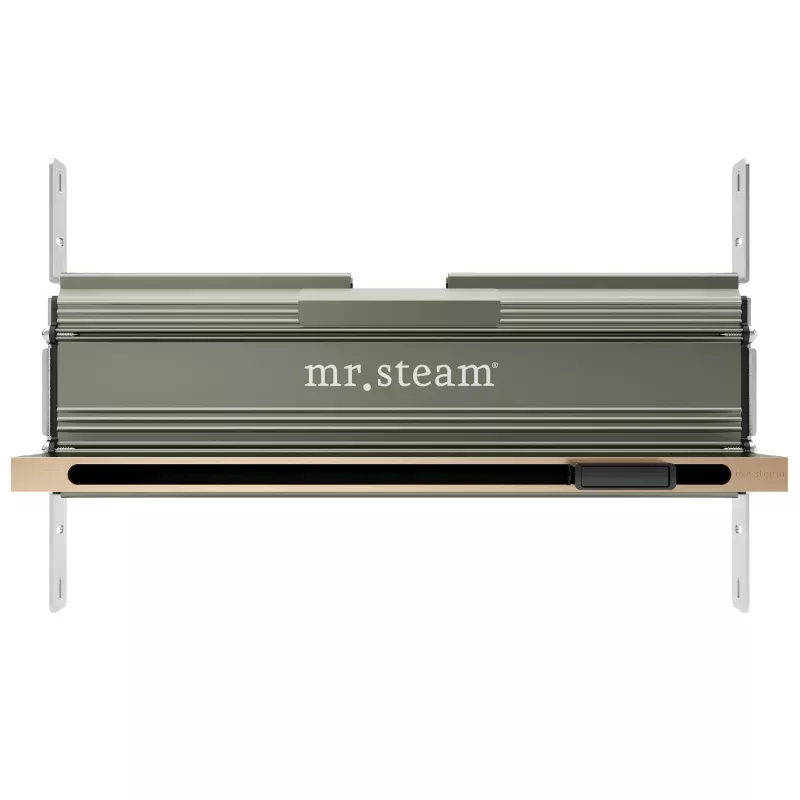

Award-winning, whisper-quiet 16-inch Linear SteamHead matches any design style. Mounts flush to the wall, and creates a wide ribbon of smoothness that brings a new level of performance and aesthetic pleasure to your steam shower. Now includes, an aroma oil well in designer finish trim, and steam diverter.
FEATURES
- A series of patented interior baffles delivers whisper quiet billowing steam
- Slender, horizontal opening disperses steam evenly and smoothly
- Decorative trim in designer finish pushes in place and is held with silicone/friction
- Aroma oil tray in neutral finish attaches to the steam head with or diverter is included
- Stainless Steel diveter can be used to reduce the steam emission if desired is included
- Fits between 16″ on center 2′ x 4″ studs
- ANodized hard coat aluminum construction and finish
- Installs flush to the wall and nearly disappears in the grout line
- No assembly of moving parts required
- Suitable withMS90MSSUPER3 generators
- 3/4 NPT connection
- Product dimensions: 16″Lx 9.7″Wx 4.8″H
- Available in multiple designer finishes
Package Includes
- Linear steam head
- Faceplate
- Diverter
- AromaTray
- Silicone Sealant
- Installation Manual
- 2-Year Warranty (Consumers Use)
| Model | 104480 |
|---|---|
| Construction material | Stainless Steel |
| Product dimensions | 16″Lx 9.7″Wx 4.8″H |
| Product weight | 9.2 lbs. |
| Shipping dimensions | |
| Length | 17″ |
| Width | 10.7″ |
| Height | 5.8 |
| Shipping weight | 10.2 lbs. |
Seegeneral installation guide, manualand specification.See planning guide, benefits brochure and steam benefits brochure.See warranty.
