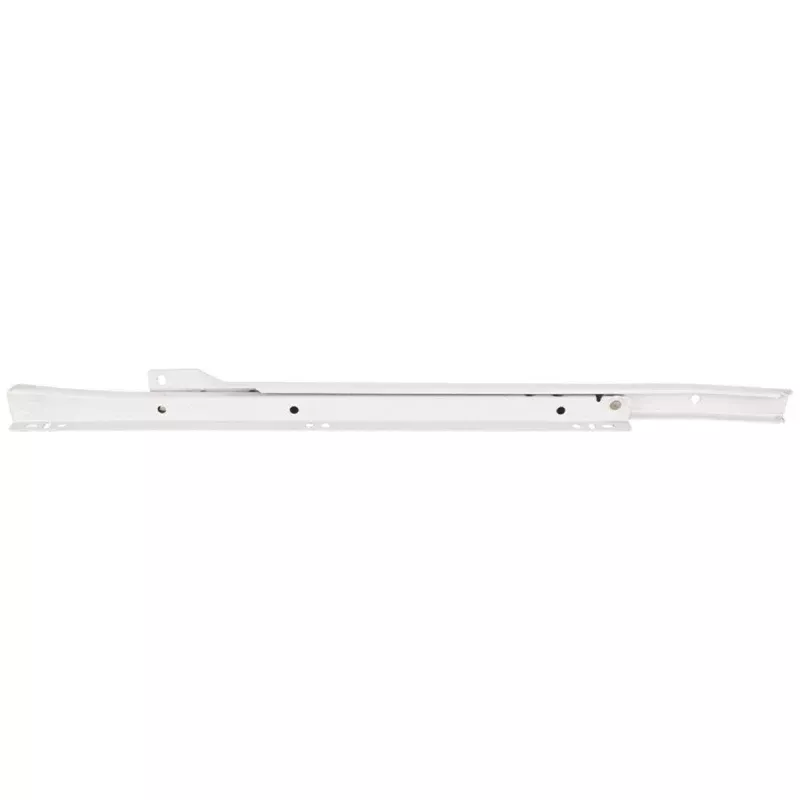

A self-closing double captive slide that reduces slide play for a more stable drawer action. Cream White Bulk Pack Self-closing Double Captive Slide Cabinet Left.
Benefits & Features:
- 3/4″ extension slide travel
- 100 lb load rating
- Side or bottom mounting style for frameless and face frame cabinetry
- POM synthetic plastic roller, cylindrically ground for smooth and quiet action
- Double captive (left and right channels) reduces side play for on-track precision across the entire length of the slide
- Positive lock-out on both members
- Disconnects via lift out
- Self-closing with positive stop prevents drawer bounce-back and roll out
- 1-5/8″ profile height
- 1/2″ side spacing
- 1.0 mm hot rolled steel material
- Epoxy powder coated cream white finish
- 32 mm system hole pattern
- 6.3 mm euro screw or 6 undercut screw is recommended
Product Details:
- Configurable Collection: Self-closing Double Captive Epoxy Slide
- Finish: White
- Finish Group: Non Metal
- Primary Material Details: Steel
- Country of Origin: China
- Ship Type: FedEx
- Warranty Period: Lifetime
Measurements:
- Extension (in): 3/4 Extension
- 16-3/8″ (416 mm)L
- Dimensions: 16-3/8″ (416 mm)L x 1-5/8″H
- Weight (lbs): 0.27
- 18-3/4″ (476 mm)L
- Dimensions: 18-3/4″ (476 mm)L x 1-5/8″H
- Weight (lbs): 0.32
- 19-3/4″ (500 mm)L
- Dimensions: 19-3/4″ (500 mm)L x 1-5/8″H
- Weight (lbs): 0.33
- 22-1/2″ (572 mm)L
- Dimensions: 22-1/2″ (572 mm)L x 1-5/8″H
- Weight (lbs): 0.38
