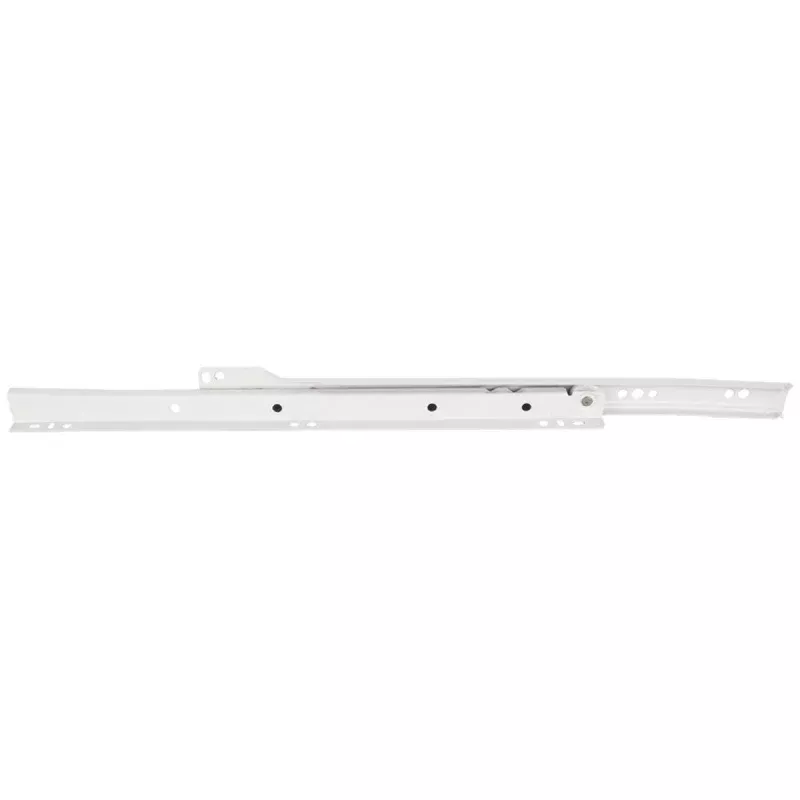

An economy self-closing slide designed specifically for use in either frameless or face frame applications. Cream White Builder Packed Self-closing Drawer Slide. Each set CL/CR/DL/DR tap together; 25 sets in one box.
Benefits & Features:
- 3/4″ extension slide travel
- 75 lb load rating
- Side or bottom mounting style for frameless and face frame cabinetry
- POM synthetic plastic roller, cylindrically ground for smooth and quiet action
- Self-closing with positive stop prevents drawer bounce-back and roll out
- 1-7/16″ side profile height
- 1/2″ side spacing
- 1.0 mm hot rolled steel material
- Epoxy powder coated cream white finish
- 32 mm system hole pattern
- 6.3 mm euro screw or 6 undercut screw is recommended
Product Details:
- Configurable Collection: Economy Cream Self-closing White Builder Pack Slid
- Finish: White
- Finish Group: Non Metal
- Primary Material Details: Steel
- Country of Origin: China
- Ship Type: FedEx
- Warranty Period: Lifetime
Measurements:
- Extension (in): 3/4 Extension
- 12″ (300 mm)L
- Dimensions: 12″ (300 mm)L x 1-7/16″H
- Weight (lbs): 0.62
- 14″ (350 mm)L
- Dimensions: 14″ (350 mm)L x 1-7/16″H
- Weight (lbs): 0.69
- 16″ (400 mm)L
- Dimensions: 16″ (400 mm)L x 1-7/16″H
- Weight (lbs): 0.82
- 18″ (450 mm)L
- Dimensions: 18″ (450 mm)L x 1-7/16″H
- Weight (lbs): 0.88
- 20″ (500 mm)L
- Dimensions: 20″ (500 mm)L x 1-7/16″H
- Weight (lbs): 0.98
