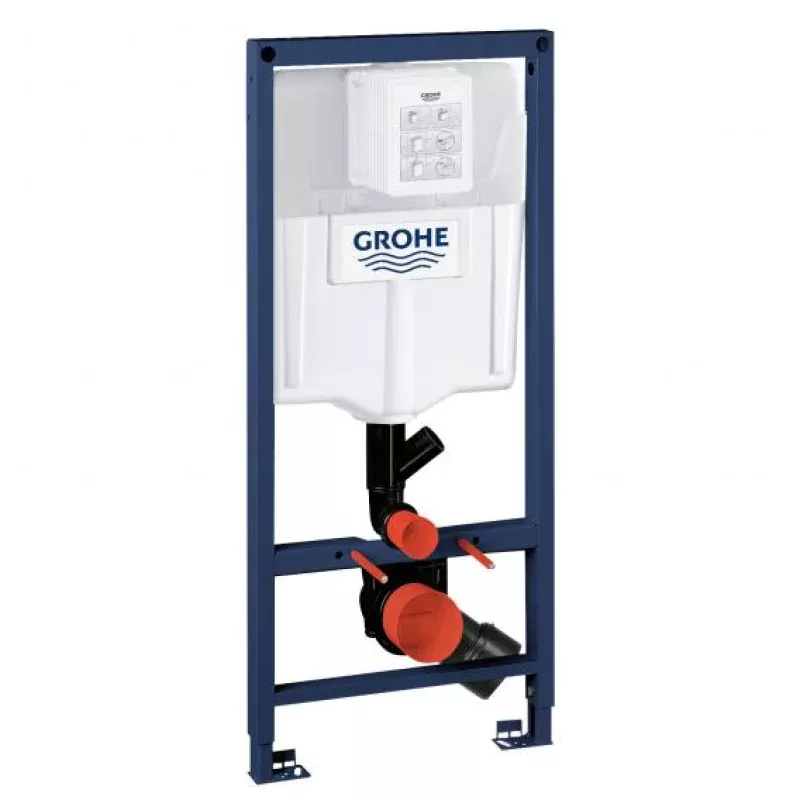

Grohe Rapid SL mounting element

Grohe Rapid SL installation element for wall-mounted toilets: with GD 2 cistern and connection for odour extraction

The installation element from the Rapid SL series from the traditional company Grohe excelswith numerous functions. Whether it’s the quick and simplified VarioPort water connection or simple attachment thanks to ToolFree – with this pre-wall element, you are always excellently equipped. The best thing about it: a flush pipe with a connection for odour extraction is included. So bad odours are a thing of the past. Go for proven Grohe quality!

Product features

Grohe Rapid SL Mounting Element for Wall-MountedToilet

• for pre-wall installations or studded walls
• for dry-cladding, completely pre-assembled
• for single or rail installation
• powder-coated steel frame, self-supporting
• with fixed connections
• 2 toilet fixing bolts with ceramic fittings
• distance of fixing bolts: 180 or 230 mm
• with quick adjustment and lockable height
• quick, simple water connection from the rear, right or left (VarioPort)
• 1/2″ water supply connection including integrated angle valve and push fit flexible hose union
• no tools required for the installation of the inspection shaft including protection during construction phase, water connection or hose connection (ToolFree)
• reducer90/110 mm, outlet bend90 mm depth adjustable
• inlet and outlet connecting set
• including installation materials, TV approved

Integrated Toilet CisternGD 2

• pneumatic flush valve
• with dual flush and start/stop operation
• factory setting: 3 litres for small flush, 6 litres for large flush
• fittings group I
• insulated against condensation
• flush plate can be installed vertically or horizontally
• including flush pipe with connection for odour extraction 50 mm

Please note

• please order accessories for pre-wall installation separately. These can be found in Accessories
• to ensure proper odour extraction, only for combination with wall-mounted toilet models up to 40 cm ceramic height with a drain height of 22 cm

SpecificationsItem number:39002000Series:Rapid SLCountry variants:complies with German standardsMaterial:metal/plasticWidth (cm):50Height (cm):113 Depth (cm):16.5Suitable:for wall-mounted toiletsConstruction:drywallActuation:frontShippingContains:pre-wall element, cistern, connection accessoriesPackaging type:ParcelpdfProduct data sheetpdfTechnical drawingspdfAssembly instructions
